700 Litrer Roto Mold Tanks Vertical Plastic Tank For Indoor And Outdoor Liquid Storage

700 Litrer Roto Mold Tanks Vertical Plastic Tank For Indoor And Outdoor Liquid Storage

  • 700 Litrer Roto Mold Tanks Vertical Plastic Tank For Indoor And Outdoor Liquid Storage
  • 700 Litrer Roto Mold Tanks Vertical Plastic Tank For Indoor And Outdoor Liquid Storage
  • 700 Litrer Roto Mold Tanks Vertical Plastic Tank For Indoor And Outdoor Liquid Storage
  • 700 Litrer Roto Mold Tanks Vertical Plastic Tank For Indoor And Outdoor Liquid Storage
700 Litrer Roto Mold Tanks Vertical Plastic Tank For Indoor And Outdoor Liquid Storage
Product Details:
Place of Origin: Changzhou Jiangsu China
Brand Name: Treering
Certification: ISO 9001
Model Number: Nl-PT 700 ( Vertical)
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Plastic warp / Carton /Pallet
Delivery Time: 3-20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20pcs per weeks
Contact Now
All Products
Rotomolding Products (34)
Poly Box Truck (57)
Chemical Dosing Tank (48)
Euro Stacking Containers (33)
Custom Roto Mold Tanks (33)
Open Top Cylindrical Tank (30)
Aquaponic Grow Bed (20)
IBC Tank (12)
Roto Molded Cooler Box (11)
HDPE Plastic Pallets (40)
Collapsible Plastic Crate (50)
Plastic Rubbish Bins (21)
Plastic Bin Boxes (23)
Plastic Rowing Boat (12)
Roto Molded Cases (4)
Rotational Molding Machine (4)
Detailed Product Description
Temperature Range: -40 ° C To +65 ° C. Volum: 700L
Material: LLDPE, UV Resistant , Food Grade Function: Storing And Saving Water, Rainwater Collected , And Recycling Household Water.
Advantage: Unique Rib Design With Various Sizes, Dimensions And Colours Outlet: 3/4" Normally
High Light:

rotomould water tanks

,

roto molded plastic products

,

700 Litrer Roto Mold Tanks



700 litrer OEM Rotational Molding Vertical Plastic Storage Tank For indoor and outdoor liquid Storage



Desciption of the water tank

Plastic Vertical Storage Tanks are manufactured from Food Grade Polyethylene (LLDPE)) with U.V.

inhibitors and designed for containment of liquids of up to 1.65 specific gravity

Roto Tank walls are translucent for level viewing and equipped with gallon indicators.  the wall thickness

can be customized from  3.5-  10 mm .

The PE tank chemical properties in the temperature range from -40 ° C to +60 ° C.

The strength of tanks provided by the ribs and shape of products.

Main used for storage of water, car wash tanks, biodiesel, liquid fertilizer, liquid feed, reverse osmosis

systems, vegetable oils and agricultural/industrial chemicals

Outlet avaiable as your request



Vertical tank volume from 200L to 50, 000 liter

Durable Polyethylene tanks -one time produced , not rust




Most Application as below :



  • Chemical Storage ,  Mixing , Transport
  •
  • above ground cisterns
  •
  • residential safe drinking water
  •
  • rainwater harvesting
  •
  • long term water storage
  •
  • emergency potable water storage
  •
  • fire protection water tanks
  •
  • farm irrigation

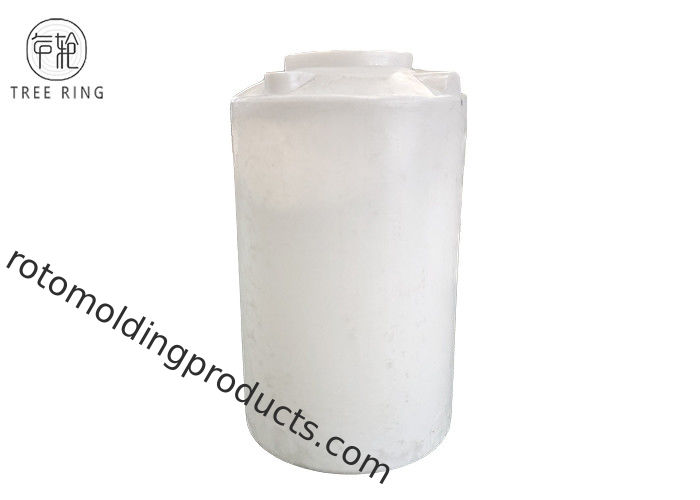

Water tank Photo
700 Litrer Roto Mold Tanks Vertical Plastic Tank For Indoor And Outdoor Liquid Storage 0
Water tank outlet can be avaiable , normally we can install the fitting and welded flange at the bottom

Roto water tank , we offen install DN20 ,DN 25 ,DN32 ,DN 50 connection or welded DN50 Flange if you did not any idear

about it , certainly , we will do as your requested in the end . we will offer the best suggestions .

the tank ladder and Protected Steel bar avaiable ( like Second picture)



Top Screw Cover ,Can be remove after screw it

Tank body rid , protect the tank ,Prevent bulk after install full liquids , especilly when the bottom have outlet ,





All the size sheet for the water tank

Mould


Capacity


Specification


PT200


200L


Diameter: 560mm
Caliber :370 mm
Heigh : 900 mm
Plastic thickness :3mm


PT300


300L



Diameter: 720mm
Caliber :450 mm
Heigh : 920 mm
Plastic thickness :3.5mm




PT500




500l



Diameter: 850mm
Caliber :450 mm
Heigh : 1100 mm
Plastic thickness :4mm

PT800
800L
Diameter: 1000mm
Caliber :450 mm
Heigh : 1270 mm
Plastic thickness :4.5mm
PT1000
1000L
Diameter: 1070mm
Caliber :450 mm
Heigh : 1400 mm
Plastic thickness :5mm
PT1500
1500L
Diameter: 1210mm
Caliber :450 mm
Heigh : 1530 mm
Plastic thickness :5.5mm
PT2000
2000L
Diameter: 1330mm
Caliber :450 mm
Heigh :1700 mm
Plastic thickness :5mm
PT3000
3000L
Diameter: 1500mm
Caliber :450 mm
Heigh : 1880 mm
Plastic thickness :6.5mm
PT4000
4000L
D1700*H2100 mm
PT5000
5000L
D1820*H2230 mm
PT6000
6000L
D12030*H2420 mm
PT8000
8000L
D12030*H3100 mm
PT10000
10000L
Diameter: 2250mm
Caliber :650m
Heigh : 2750m
Plastic thickness :12.5
PT15000
15000L
D2680*H3030 mm
PT20000
20000L
D2700*H3950 mm
PT30000
30000L
D3100*H4300 mm
PT4000
40000L
D3400*H5000mm
PT50000
50000L
D3400*H6500 mm
