Vertical Liquids Storage Plastic Roto Mold Tanks With Outlet Drain PT 2000L

Vertical Liquids Storage Plastic Roto Mold Tanks With Outlet Drain PT 2000L

  • Vertical Liquids Storage Plastic Roto Mold Tanks With Outlet Drain PT 2000L
  • Vertical Liquids Storage Plastic Roto Mold Tanks With Outlet Drain PT 2000L
  • Vertical Liquids Storage Plastic Roto Mold Tanks With Outlet Drain PT 2000L
  • Vertical Liquids Storage Plastic Roto Mold Tanks With Outlet Drain PT 2000L
Vertical Liquids Storage Plastic Roto Mold Tanks With Outlet Drain PT 2000L
Product Details:
Place of Origin: Changzhou Jiangsu China
Brand Name: Treering
Certification: ISO 9001
Model Number: Nl-PT 2000
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Plastic warp / Carton /Pallet
Delivery Time: 3-20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20pcs per weeks
Contact Now
Detailed Product Description
Temperature Range: -40 ° C To +65 ° C. Volum: 2000L
Material: LLDPE, UV Resistant , Food Grade Size: Diameter: 1330mm * Heigh :1700 Mm
Function: Storing And Saving Water, Rainwater Collected , And Recycling Household Water. Advantage: Unique Rib Design With Various Sizes, Dimensions And Colours
High Light:

rotomould water tanks

,

roto molded plastic products

PT 2000L Vertical Liquids Storage Plastic Roto Mold Tanks With Outlet Drain







Desciption of the water tank





PT2000liter Roto Mold Tanks produced by rotational molding from high-strength, frost, food polyethylene.

The material is resistant to UV product exposure does not alter the physical and chemical properties in the

temperature range from -40 ° C to +60 ° C. The strength of tanks provided by the ribs and shape of

products..This Vertical tanks are freestanding for indoor or outdoor stationary applications .

The rotational molding is a thermoplastic fabrication technique that manufactures hollow products by using

heat and a revolving metal mold. Rotomolded products are seamless, uniform in wall thickness and of

single construction, which eliminates costly fabrication processes and the need for replacement parts.





Features:









Application






Chemical Storage ,  Mixing , Transport



above ground cisterns



residential safe drinking water



rainwater harvesting



long term water storage



emergency potable water storage



fire protection water tanks



farm irrigation









Sepcification







Model





Capacity





Weight





Dimensions





Lid





Fitting





Specific Gravity





PT-2000 l





2000L (528Gallon)





40





D1330 *H1700





445





2″ -4"





1.0 -1.35





Notice: if you storage liquids Specific Gravity , please let me know , the tank need do more heavy and more thicker , also need install steel bar to Protect the tank then lasting the tank using life !!!



All the size sheet for the water tank



Mould





Capacity





Specification





PT200





200L





Diameter: 560mm

Caliber :370 mm

Heigh : 900 mm

Plastic thickness :3mm





PT300





300L







Diameter: 720mm

Caliber :450 mm

Heigh : 920 mm

Plastic thickness :3.5mm









PT500









500l







Diameter: 850mm

Caliber :450 mm

Heigh : 1100 mm

Plastic thickness :4mm



PT800 800L

Diameter: 1000mm

Caliber :450 mm

Heigh : 1270 mm

Plastic thickness :4.5mm

PT1000 1000L

Diameter: 1070mm

Caliber :450 mm

Heigh : 1400 mm

Plastic thickness :5mm

PT1500 1500L

Diameter: 1210mm

Caliber :450 mm

Heigh : 1530 mm

Plastic thickness :5.5mm

PT2000 2000L

Diameter: 1330mm

Caliber :450 mm

Heigh :1700 mm

Plastic thickness :5mm

PT3000 3000L

Diameter: 1500mm

Caliber :450 mm

Heigh : 1880 mm

Plastic thickness :6.5mm

PT4000 4000L D1700*H2100 mm
PT5000 5000L D1820*H2230 mm
PT6000 6000L D12030*H2420 mm
PT8000 8000L D12030*H3100 mm
PT10000 10000L

Diameter: 2250mm

Caliber :650m

Heigh : 2750m

Plastic thickness :12.5

PT15000 15000L D2680*H3030 mm
PT20000 20000L D2700*H3950 mm
PT30000 30000L D3100*H4300 mm
PT4000 40000L D3400*H5000mm
PT50000 50000L D3400*H6500 mm

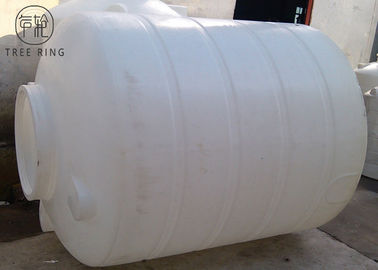

1000L Water tank Photo

Vertical Liquids Storage Plastic Roto Mold Tanks With Outlet Drain PT 2000L 0

Water tank outlet can be avaiable , normally we can install the fitting and welded flange at the bottom

2000L water tank , we offen install DN20 ,DN 25 ,DN32 ,DN 50 connection or welded DN50 Flange if you did not any idear



about it  ,  certainly , we will do as your requested in the end  . we will offer the best suggestions .



the tank ladder and Protected Steel bar avaiable ( like Second picture)



Vertical Liquids Storage Plastic Roto Mold Tanks With Outlet Drain PT 2000L 1



Top Screw Cover ,Can be  remove after screw it



Tank body rid , protect the tank ,Prevent bulk after install full liquids , especilly when the bottom have outlet ,
