Heavy Duty Rotomolded Rectangular Tuff Poly Tapered Tubs On Trolleys For Materials Handling

Heavy Duty Rotomolded Rectangular Tuff Poly Tapered Tubs On Trolleys For Materials Handling

  • Heavy Duty Rotomolded Rectangular Tuff  Poly Tapered Tubs On Trolleys For Materials Handling
  • Heavy Duty Rotomolded Rectangular Tuff  Poly Tapered Tubs On Trolleys For Materials Handling
  • Heavy Duty Rotomolded Rectangular Tuff  Poly Tapered Tubs On Trolleys For Materials Handling
  • Heavy Duty Rotomolded Rectangular Tuff  Poly Tapered Tubs On Trolleys For Materials Handling
  • Heavy Duty Rotomolded Rectangular Tuff  Poly Tapered Tubs On Trolleys For Materials Handling
  • Heavy Duty Rotomolded Rectangular Tuff  Poly Tapered Tubs On Trolleys For Materials Handling
Heavy Duty Rotomolded Rectangular Tuff  Poly Tapered Tubs On Trolleys For Materials Handling
Product Details:
Place of Origin: Changzhou Jiangsu China
Brand Name: Treering
Certification: ISO 9001
Model Number: NL-K700
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Plastic warp / Carton /Pallet
Delivery Time: 3-20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10sets per 5days
Contact Now
Detailed Product Description
Model: K700 L Type: Textile Inner Tub
Thickness: 5-8 Mm Plastic Liner Thickness Of Wall Loading Capacity: 700kg Water Weight
Application: Trolley For Fabric , Textile Hotels, Poolside Towel Receptacle, Parts Storage In A Warehouse, Moving And Other Storage And Transportation Material: LLDPE
High Light:

plastic box truck cart

,

plastic laundry cart on wheels

Heavy Duty Rotomolded Rectangular Tuff Poly Tapered Tubs On Trolleys For Materials Handling





Description





The Roto Tub design to tapered shaoe , which design allows them to be nested inside one another, making



them cost effective to both store and transport as they take up considerably less space than most other



containers. Each tapered container has been manufactured from 100% food grade, Lower density



polyethylene with a completely smooth interior making them ideal for food applications like kitchens,



restaurants, bars and hotels as they are extremely to maintain due to easy-cleaning.



The rotational moulded build ensures they are resistant to most chemicals and optional lids are also



available to secure goods more efficiently.







Specifications





Model





 K700 Plastic rectangular Tub





Outer size





  L1580*1180*500 mm, Inner 1430*1050*480 mm





Capacity





700L





Thickness





 5-10  mm





Weight





 18-25kg ( tank weight )





Color





 White in Stock ,Customized any other color





Material





UV stabilised 100% food grade polyethylene





Function





 Transport wet laundry for texitle ind, bulk materials and trash





Wheels / Castors:





Customized as your requested





Buit as Plastic Laundry Trolley , full different Type to choice





4 Type box



Type :1 Just four wheels Fitted with 2 x fixed, 2 x swivel castors ( castors size can booked as what you want )



Type :2 four wheels +flat steel sheet Fitted with 2 x fixed, 2 x swivel castors ( castors size can booked as what you want )



Type :3 four wheels +half steel cage Fitted with 2 x fixed, 2 x swivel castors ( castors size can booked as what you want )





Type :4 four wheels + full cage +handle Fitted with 2 x fixed, 2 x swivel ( castors size can booked as what you want )  - this type suitable for large cart  > 800 kg

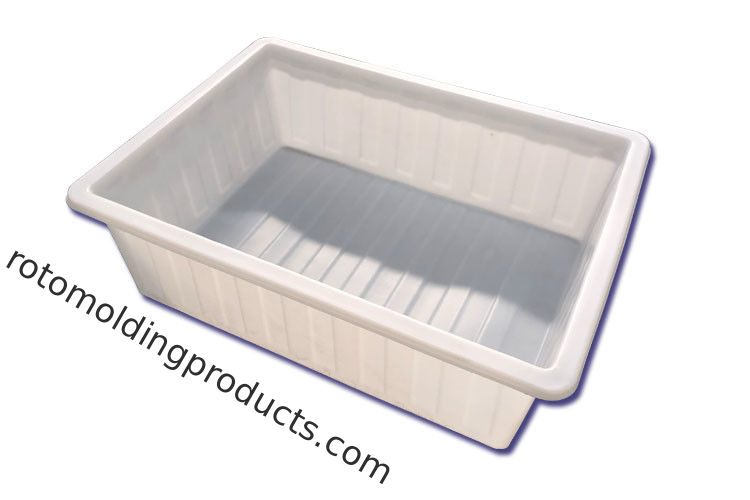

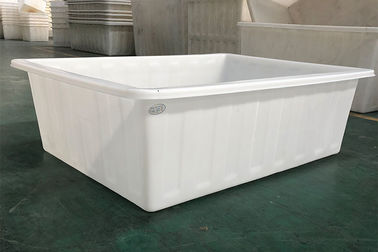

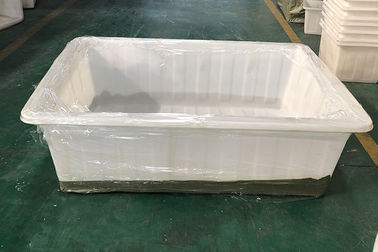

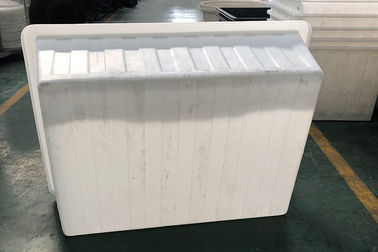

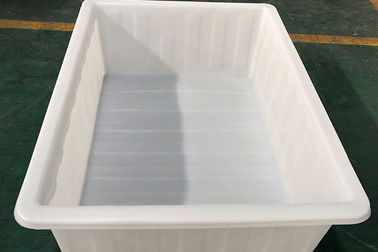

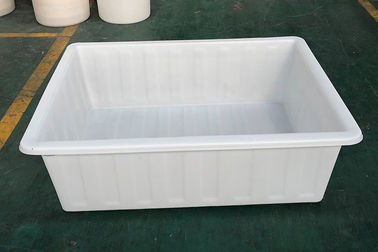

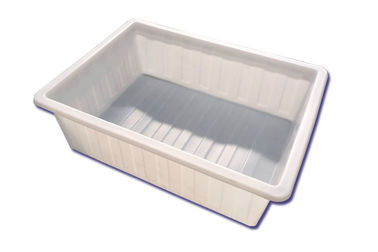

700L Plastic Tub Photo SHowing





Heavy Duty Rotomolded Rectangular Tuff  Poly Tapered Tubs On Trolleys For Materials Handling 0







Model Capacity UP Size (L*W) mm Bottom Size (L*W)      mm

Height

(mm)

K50L -1 50L 457*305 357*205 483
K50L 50L 590*430 470*320 350
K90L 90L 680*480 580*380 370
K120L 120L 720*480 610*390 400
K140L 140L 740*530 620*430 420
K160L-1 160L 735*510 640*450 500
K160L-2 160L 750*550 640*470 490
K180L 180L 510*510 450*450 600
K180L-1 180L 510*510 450*450 550
K200L-2 200L 850*600 720*500 550
K200L-3 200L 775*575 675*490 590
K300L-1 300L 1080*700 930*530 625
K300L-2-A 300L 900*650 750*500 670
K300L-3 300L 1000*650 860*530 630
K300L-5 300L 800*560 700*480 850
K330L 330L 772*772 630*630 844
K400L 400L 1150*760 1025*630 650
K400L-1 400L 980*760 820*600 690
K450L 450L 1110*810 885*640 660
K500L 500L 1320*800 1070*650 650
K600L 600L 1450*900 1220*700 670
K700L 700L 1050*150 950*950 770
K700L-1 700L 1310*910 1100*750 800
K800L 800L 1575*1210 1370*1035 580
K1000L -1 1000L 1140*1140 940*940 1170
K1000L-2 1000L 1100*1100 880*880 1100
K1000L 1000L 1560*1130 1350*1020 730
K1100L 1100L 1800*1200 1550*1000 600
K1150L 1150L 1940*1120 1820*1000 600
K1200L 1200L 1950*1240 1730*1020 600
K1200L-1 1200L 2000*1170 1700*860 750
K1300L 1300L 1850*1380 1580*1130 570
K1300L-1 1300L 2100*1080 1794*744 880
K1500L 1500L 2030*1220 1800*1030 650
K1600L 1600L 2060*1350 1790*1080 800
K1600L-1 1600L 2120*1220 1800*960 800
K1650 1650L 1950*1320 1650*1100 770
K1700L 1700L 2130*1360 1850*1100 600
K1800L 1800L 2000*1280 1660*970 1000
K2000L 2000L 2930*1330 2650*1100 650
K2500L 2500L 3160*1340 2890*1100 700



If you book the steel cage type using your shape or customzied your bins size  , please let me know details , we accept OEM service . and we will offer the drawing for your reference
