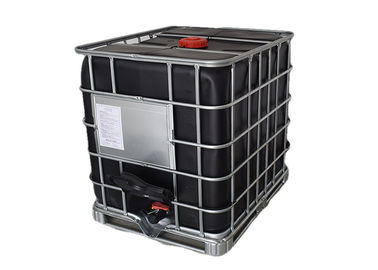

Black Plastic Tote Ibc Tank Container 275 Gallon With Steel Pallet UN Approved

Black Plastic Tote Ibc Tank Container 275 Gallon With Steel Pallet UN Approved

    • Black Plastic Tote Ibc Tank Container 275 Gallon With Steel Pallet UN Approved
    • Black Plastic Tote Ibc Tank Container 275 Gallon With Steel Pallet UN Approved
    • Black Plastic Tote Ibc Tank Container 275 Gallon With Steel Pallet UN Approved
    • Black Plastic Tote Ibc Tank Container 275 Gallon With Steel Pallet UN Approved
  • Black Plastic Tote Ibc Tank Container 275 Gallon With Steel Pallet UN Approved

    Product Details:

    Place of Origin: Changzhou Jiangsu China
    Brand Name: Treering
    Certification: ISO 9001 ,UN ,food grade inspection report
    Model Number: NL-IBC1000L

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Plastic warp / Carton /Pallet
    Delivery Time: 3-20 days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 50pcs per weeks
    Contact Now
    Detailed Product Description
    Type: IBC Container 1000L Thickenss: >1.5 Mm
    Size: 1200*1000*1150 Mm Material: Virgin HDPE +metal
    Applications:: For Bulk Materials Other Characteristics: Transport
    Advantage: UN Approved
    High Light:

    rotomould water tanks

    ,

    roto molded plastic products


    Plastic Tote Water Tanks 1000 Litre(275 Gallon) New Metal Ibc Container With Steel Pallet - Un Approved





    Description of the 1000L IBC tank


    Changzou Treering Plastics offer 500L 800L , 1000L 1200L IBC Tank,



    which Called Intermediate Bulk Containers (IBC), these tanks meet UN standards for transportation specifications.



    All the tank secured to a galvanized steel pallet, they are easy to maneuver with a forklift or pallet jack.



    Can be stacked two high when full and four high when empty.




    Specification



    The Technical Date of 1000L HDPE IBC  tank



    Item



    Specification



    Tolerence



    Rated Volume(L)



    1000L


     None


    Brimful Volume(L)



    <1050L


    None


    Overall Dimension(mm)



    1200*1000*150 mm


    ±2.5%


    Top cap Mouth diameter




    150mm



    ±2 %


    Cap type



    pressure vent and rain cap





    Material of the Inner tank



    otomoulded lower Polyethylene





    Weight for Inner Tank(kg)



    16kg -20 kg


    ±0.5%


    Weight for IBC Tank(kg)



    57-58kg


    ± 2%


    Valve outside diameter(mm)



    50 mm


    ± 1%


    Wall Thickness(min)



     ≥1.5mm





    Outlet Valve(discharge valve)



    DN50 ball valve& butterfly valve





    Height for Pallet(mm)



    120 mm





    Height for forklift holes(mm)



    90 mm





    Material of the cage



    Aluminum or steel galvanized











    Feature


    Made of LLDPE, the inner bottle of the IBC is of Lower density, easy to clean and innocuous.

    More durable and Safety when transport

    Made of first-class hot-dip galvanized steel pipes, the frame of the container is firm, durable and corrosion-resisting.

    Made of engineering plastics, the angle bead and cover plate can well protect the inner barrel and the valve.

    Made of quality galvanized steel plates, the four-way-inlet pallet well protects the inner, and is of best stability, easy to load, unload and stack.

    Equipped with exhaust devices, the container cap ensures liquid safety during transportation.

    Fixed by bolts into the container top, so the inner bottle can be easily replaced.


    IBC Inner Plastic tanks are made of FDA-compliant polyethylene and are protected by a rigid tubular galvanized steel cage.

    Tanks come standard with a 6"(150mm )Vent top opening with threaded cap and TPE gasket, a 2" NPS fill opening, and a drain outlet (Valve) that has a 2" PVC valve and a dust cap. Maximum temperature allowed is 60℃ .The inner tank color is translucent white.

    IBC Tanks are recommended for use in applications where it is critical to ship and store materials in the same container. Can be used for either hazardous or nonhazardous liquids ( Like oil ,ulphuric acid ..) . if you need , the INNER HDPE plastic tank can do UV-blocking additive for extended sunlight exposure resistance.



    Black Plastic Tote Ibc Tank Container 275 Gallon With Steel Pallet UN Approved 0



    The IBC tank Details


    Black Plastic Tote Ibc Tank Container 275 Gallon With Steel Pallet UN Approved 1
    Black Plastic Tote Ibc Tank Container 275 Gallon With Steel Pallet UN Approved 2Black Plastic Tote Ibc Tank Container 275 Gallon With Steel Pallet UN Approved 3

    Black Plastic Tote Ibc Tank Container 275 Gallon With Steel Pallet UN Approved 4


    Changzhou Treering IBC tank developing history :

    Black Plastic Tote Ibc Tank Container 275 Gallon With Steel Pallet UN Approved 5

    IBC tank Install detials in the Warehouse :

    Black Plastic Tote Ibc Tank Container 275 Gallon With Steel Pallet UN Approved 6Black Plastic Tote Ibc Tank Container 275 Gallon With Steel Pallet UN Approved 7

    The IBC tank have  UN certificate , ISO , and food grade inspection report


    Black Plastic Tote Ibc Tank Container 275 Gallon With Steel Pallet UN Approved 8

    Black Plastic Tote Ibc Tank Container 275 Gallon With Steel Pallet UN Approved 9 Black Plastic Tote Ibc Tank Container 275 Gallon With Steel Pallet UN Approved 10Black Plastic Tote Ibc Tank Container 275 Gallon With Steel Pallet UN Approved 11
