220 Gallon Commercial Chemical Dosing Tank For Closed Loop Chilled Water Circulation Piping System

220gallon Commercial Rotomolding Chemical Dosing System for Closed Loop Chilled Water Circulation Piping System

Description

Automatic Liquid dosing system for Boiler Circulating Water

It's owner's wish to achieve the automatic on-line control of plumbing anti-corrosion,

descaling,killing microorganism,with energy-efficient

The device can be divided into three categories according to the occasion.

1. Oil field dosing device. It is mainly used for injecting various liquids such as flocculants, scale inhibitors,

corrosion inhibitors, demulsifiers and the like into wellheads and other systems on the platform during oil

extraction.

2. Boiler dosing device. It can be used to add ammonia and hydrazine to boiler feed water, add ammonia

and hydrazine to condensate, add ammonia and add hydrazine to stop furnace protection, and add

phosphate to steam boilers, mainly for power plants and power stations.

3, water treatment dosing device. During the water treatment process, tap water, waste water, and sewage.

Mainly used for related water supply and drainage treatment, environmental protection and other

processes. Such as water plants, hotels, restaurants, swimming pools, sewage treatment plants.

The current sales Chemical Dosing Systems mainly include the following Sets :

1 Polyaluminum chloride (PAC) dosing device

2 Polyacrylamide (PAM) dosing device,

3 flocculant dosing device

4 Boiler water dosing device

5 Phosphate dosing device

6 PH acid-base adjustment dosing device

7 Scale inhibitor dosing device

8 sodium hypochlorite dosing device

9 Disinfectant Dosing Device

10 desulfurizer dosing device, etc.

Application for the Chemical Dosing Systems

1. Central air-conditional recycle cooling water,

2. Chilled water(hot water for heating device),

3. Steam boiler,

4. Swimming pool,

5. Fire deluge system,

6. Ice slurry storage system,

7. Condensate,

8. Landscape water,

9. Rain collect system,

10. Reclaimed water system,

11. Sewerage system,

12. The industrial process water in industry of steel,

13. Petrochemistry,thermal power,

14. Paper making,

15. Oilfield,microelectronics,

16. Medicine.

Specifications :

 Model

  MC1000L

 Thickness of the wall

  7 mm - 12 mm

 Storage checmical       item

  Alkaline or low corrosion chemicals ,Biocides ,oxidiser corrosive fluids

 Volume of Tank(litre)

1000L
( other volum avaiable : 50L 100L 200L 300L 1000L1500L 2000L 3000L )

 Agitator

 0.35KW -1.7KW ( suggestion , if you have other requested , please let me know)

 Impeller Shaft

 SS304 or Steel lined plastic

 Design

 Special top to drilled hole and install the pumps

Changzhou Treering Plastics Chemcial dosing Systems Dimension Table

Dosing System Working principle

The dosing device is based on metering pumps as the main dosing equipment, solvent dosing tanks,

dosing dosing devices, level gauges, safety valves, check valves, pressure gauges, filters, buffers,

pipelines, valves, bases The escalators, escalators, automatic monitoring systems, power control systems,

etc. are assembled on a common platform according to the process flow and form a module, the so-called

skid-mounted modular unit.

The dosing device adopts the form of electromechanical integration structure, and can be divided into fixed

and movable (cart-type) from the installation. Each type of dosing device is equipped with a stirring system,

a dosing system and an automatic control system. . Several fixed armored units can be combined into a

single unit, plus a variable frequency control system, which can realize local control, remote automatic

control, and manual and automatic mutual conversion dosing. The utility model has the advantages of

compact structure, small size, low noise, stable operation, simple installation and convenient operation and

the like.

The dosing device is designed through different processes to precisely configure the solutions of various

types of solid and liquid chemicals, and then accurately dosing with a metering pump to meet various

design requirements. Such as descaling, oxygen, coagulation, acid, alkali and so on.

The dosing process can be manually operated, and can also be controlled by PCs, magnetic flap level

gauges, pH meters, stroke controllers, frequency converters, and other electrical appliances, meters, and

medicated devices.

The dosing unit and dosing pressure of the dosing device can be selected according to the needs of

industrial processes. Flow rate from 1L/h to 8000L/h, pressure can be selected from the range of 0.1MPa to

25MPa to the right product,

Metering pumps can measure up to ± 1% accuracy, and can achieve simultaneous delivery of a variety of

media, individually adjusted.

The volume of the solution tank in the dosing device can be as small as 0.1m3 to 20m3, and can be

selected according to the amount of dosing. According to the different transport media, there are many

materials to choose from, such as carbon steel (carbon steel lined rubber), stainless steel, non- Metal

materials (PE, PVC, PP, PTFE), etc.

 Photo Showing

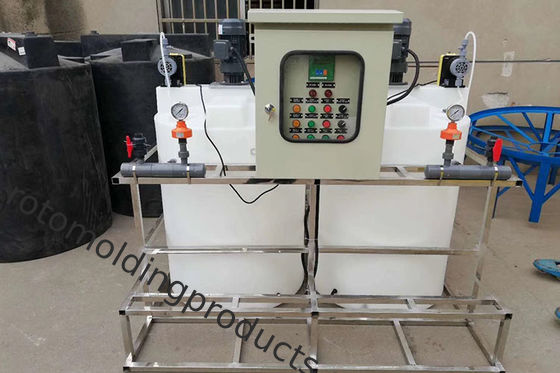

Two Tank one Pump ( first Picture showing), it have

Plastic dosing tank , Stainless Steel cage ,  Distribution box ,Mixer (0.75KW for 1000L) ,

Metering pump (100m3/h) , Filter , Pressure gauge , Safety valve .PVC Pipe
