| Place of Origin: | Changzhou Jiangsu China |
| Brand Name: | Treering |
| Certification: | ISO 9001 |
| Model Number: | NL-MC500 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic warp / Carton /Pallet |
| Delivery Time: | 3-20 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 3000 per per Month |
| Color:: | White ,yellow In Stock . Customized Any Color | Volume: | 500L |
|---|---|---|---|
| Material: | UV Stablised Linear Polyethylene | Application: | Sewage Treatment ,does Chlorine For Disinfection ,Dose PAC For Coagulation |
| Size: | D800*H1170 Mm | Thickness: | 5mm |
| Technique: | Rotomolding | Service: | Customized Size , Color |
| Highlight: | hdpe chemical tank,chemical mixing tank,Cylindrical Blue Emergency Poly Water Tanks |
||
Description
The Round Plastic water tank , Made by rotomolding-One-piece hollow construction ,using
LLDPE material . ,the thickness can be customzied
from 3mm to 8mm if you want .it works for liquid mixing and storage tanks and chemical feed system with
integral dosing pump, and control equipment .
we also offer dosing pumps used in our standard chemical feed equipment
packages are designed for heavy duty industrial applications
For the Outlet :DN15 ,DN 20,DN 25,Dn 32 .... for your selected
Shorter lead-time from concept to production
The volume from 13gallon to 800 Gallons
LLDPE UV stabilised polyethylene
Ability to produce multi-wall parts
Supplied with screw caps for safety
Split level top design for install the pump and Mixing machine
Provides area for mounting equipment , such as agitators, pumps etc.
Available as standard in natural polymer (other colours are available subject to quantity, prices are available on request).
Economical for short production runs, prototype research and volume production
Cost saving-economic tooling costs if you want to custom size
Specifications :
Model
|
MC500L
|
|
Size
|
D800*H1170 mm
|
Thickness of the wall
|
7 mm - 12 mm
|
Storage checmical item
|
Alkaline or low corrosion chemicals ,Biocides ,oxidiser corrosive fluids
|
Volume of Tank(litre)
|
500L
( other volum avaiable : 50L 100L 200L 300L 1000L1500L 2000L 3000L )
|
Agitator
|
0.55KW ( suggestion , if you have other requested , please let me know)
|
Impeller Shaft
|
SS304 or Steel lined plastic
|
Design
|
Special top to drilled hole and install the pumps
|

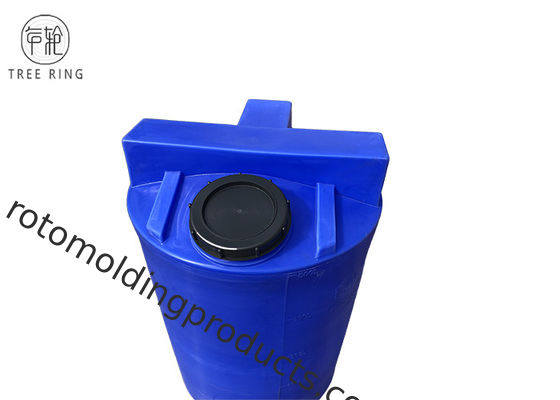

Photo show :
All the dosing tank size :
| Model | Capacity | Dia.(mm) | Height | Wall thickness |
| Round shape dosing tank : 50L to 3000L | ||||
| MC-50L | 50L | 377 | 485 | 5mm |
| MC-100L | 100L | 445 | 750 | 5mm |
| MC-200L | 200L | 555 | 970 | 6.5mm |
| MC-300L | 300L | 725 | 990 | 7mm |
| MC-500L | 500L | 800 | 1170 | 7mm |
| MC-1000L | 1000L | 1000 | 1430 | 6mm |
| MC-1500 | 1500L | 1300 | 1335 | 6mm |
| MC-2000L | 2000L | 1270 | 1670 | 6mm |
| MC3000 | 3000L | |||
| Model | Capacity | Size (L*W*H) | Wall thickness | |
| Rectangular / square dosing tank : 40L to 300L | ||||
| KC- 40 | 40L | 370*320*370 | 5mm | |
| KC80-1 | 80L | 515*405*400 | 5mm | |
| KC-80L-2 | 80L | 350*350*645 | 6mm | |
| K100 | 100L | 460*280*H900 | 7mm | |
| KC-120L | 120L | 410*375*730 | 5mm | |
| KC-200L-1 | 200L | 580*580*830 | 6mm | |
| KC-200L-2 | 200L | 590*425*750 | 4mm | |
| KC-300L | 300L | 555*555*1140 | 8-9mm | |
| Cone bottom dosing tank ( difference size) | ||||
| Model | Volum | Size (mm) | Thickness (mm) |
| CMC100L | 100L | D450 *H780 | 4 |
| CMC200L | 200L | D550*H1020 | 4 |
| CMC300L | 300L | D700*H1100 | 5 |
| CMC500L | 500L | D800*H1380 | 6 |
| CMC1000L | 1000L | D1040 *H1500 | 7 |
| CMC1500L | 1500L | D1200 *H1590 | 7 |
| CMC2000L | 2000L | D1300*H1950 | 7 |
| CMC3000L | 3000L | D1460 *H2060 | 8 |
| CMC 5000L | 5000L | D1760*H2490 | 10 |
Besides :
we supply Dosing tank systems , as below , if you are interested in this , Please contact us
Serena@cztreering.com
+86 15051955023
