Place of Origin: | Changzhou Jiangsu China |
Brand Name: | Treering |
Certification: | ISO 9001 |
Model Number: | MC1000 |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic warp / Carton /Pallet |
Delivery Time: | 3-20 days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 500 per per Month |
Features: | Seamless One Piece Rotomoulding, Food Grade And UV Resistant | Volum: | 1000L ( 250gallon ) |
---|---|---|---|
Material: | Food Grade Plastic | Application: | Sewage Treatment ,does Chlorine For Disinfection ,Dose PAC For Coagulation |
Size: | D1000*H1430 Mm | Thickness: | 5mm |
Shape: | Cylindrical | Lid Size (mm): | 300mm |
High Light: | hdpe chemical tank,chemical mixing tank,Rotomolding 250 Gallon Chemical Storage Tanks |
Description
Rotomolding plastic dosing tank , round shape , full volume selects ( from 50L to 5000L , the shape we also have rectangular shape
We have a comprehensive range of high quality liquid mixing and storage tanks and chemical feed system
with integral dosing pump, and control equipment .
This chemcical dosing tank using rotomoulding technique ,the thickness can be customzied from 3mm to
8mm if you want .it works for liquid mixing and storage tanks and chemical feed system with integral dosing
pump, and control equipment . we Also offer dosing pumps used in our standard chemical feed equipment
packages are designed for heavy duty industrial applications
For the dosing tank , we develop the dosing chemical systems , if you like it , Please contact us
Specifications :
Model
|
MC1000L
|
Size
|
D1000*H1430 mm |
Thickness of the wall
|
7 mm - 12 mm
|
Storage checmical item
|
Alkaline or low corrosion chemicals ,Biocides ,oxidiser corrosive fluids
|
Volume of Tank(litre)
|
1000L
( other volum avaiable : 50L 100L 200L 300L 500L1500L 2000L 3000L )
|
Agitator
|
50L -200L : 0.37KW
300L -500L : 0.55KW
500L -1000L : 0.75KW
1500L -2000L : 1.1KW
2000L -3000L: 1.5KW
5000L : 4 KW
|
Impeller Shaft
|
SS304 or Steel lined plastic
|
Design
|
Special top to drilled hole and install the pumps and other machine
|
Application |
Dose Chlorine for disinfection
Used on Cleaning fruit and vegetables K
Desalination of Seawater and Brackish Water
|

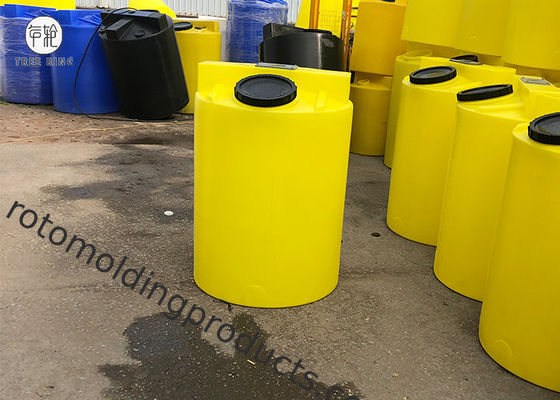

Photo Show :
Dosing systems composition
dosing tank + Agitator +dosing pump +Level gauge
All the dosing tank size :
Model | Capacity | Dia.(mm) | Height | Wall thickness |
Round shape dosing tank : 50L to 3000L | ||||
MC-50L | 50L | 377 | 485 | 5mm |
MC-100L | 100L | 445 | 750 | 5mm |
MC-200L | 200L | 555 | 970 | 6.5mm |
MC-300L | 300L | 725 | 990 | 7mm |
MC-500L | 500L | 800 | 1170 | 7mm |
MC-1000L | 1000L | 1000 | 1430 | 6mm |
MC-1500 | 1500L | 1300 | 1335 | 6mm |
MC-2000L | 2000L | 1270 | 1670 | 6mm |
MC3000 | 3000L | |||
Model | Capacity | Size (L*W*H) | Wall thickness | |
Rectangular / square dosing tank : 40L to 300L | ||||
KC- 40 | 40L | 370*320*370 | 5mm | |
KC80-1 | 80L | 515*405*400 | 5mm | |
KC-80L-2 | 80L | 350*350*645 | 6mm | |
K100 | 100L | 460*280*H900 | 7mm | |
KC-120L | 120L | 410*375*730 | 5mm | |
KC-200L-1 | 200L | 580*580*830 | 6mm | |
KC-200L-2 | 200L | 590*425*750 | 4mm | |
KC-300L | 300L | 555*555*1140 | 8-9mm | |
Cone bottom dosing tank ( difference size) |
Model | Volum | Size (mm) | Thickness (mm) |
CMC100L | 100L | D450 *H780 | 4 |
CMC200L | 200L | D550*H1020 | 4 |
CMC300L | 300L | D700*H1100 | 5 |
CMC500L | 500L | D800*H1380 | 6 |
CMC1000L | 1000L | D1040 *H1500 | 7 |
CMC1500L | 1500L | D1200 *H1590 | 7 |
CMC2000L | 2000L | D1300*H1950 | 7 |
CMC3000L | 3000L | D1460 *H2060 | 8 |
CMC 5000L | 5000L | D1760*H2490 | 10 |
